The innovative B&G H5000 instrument system is powered by a smart Central Processing Unit (CPU) with the ability to run three levels of software, Hercules, Hydra and Performance. Hercules is specifically designed for racing yachts, giving you additional features geared towards success on the race track, inshore and offshore.
On top of the benefits of provided by Hydra, Hercules adds a whole tier of race functionality with the advantages of more accurate data and more race specific features, alongside web-browser integration for ease of set-up. By adding optional sensors, you can benefit from 3D Motion wind correction, offsetting the unavoidable discrepancy of induced wind errors caused by boat motion, for more accurate results. An integrated Polar table provides target boat speed, target wind angles and performance monitoring for a real racing advantage.
Enjoy advanced calibration with heel/linearity correction of boat speed for supreme accuracy and increased sensitivity of boat speed data to real accelerations / decelerations with Dynamic Damping. Enhanced HV display control provides a 10Hz update and context switching, automatically changing the display setting between pre-start, upwind, reaching and downwind. Hercules also provides enhanced communication, Polar table configuration and Start Line information.
It is effortless to set up and calibrate with the new H5000 web-browser interface, however complex the system.
- Hydra spec plus: Hercules is packed with all the powerful features of the Hydra system, but adds unique functionality for serious racers.
- HV Display Context Switching:Enhanced HV display control provides a 10Hz display update and context switching, automatically changing the display setting between pre-start, upwind, reaching and downwind.
- Polar Performance Data: Hercules is designed to optimise your racing, providing facility to calculate performance target information from an integrated Polar table so you can ensure you are performing to the optimum.
- Remote Data Interface:Expand Hercules’s functionality even further with third-party apps and stream data via Ethernet or GoFree™, B&G’s powerful wireless solution to remotely view H5000 instrument data via your tablet or smartphone. GoFree™ requires additional module.
- Enhanced Start Line Data: Hercules provides enhanced Start Line data with “time to burn” data available from Polar performance data or SOG. H5000’s enhanced positioning ensures the bow position is continuously calculated for sure starts.
- 3D Motion Wind Correction Support: Offset the unavoidable discrepancy of induced wind errors caused by the motion of the yacht rolling in waves, for more accurate results.
- Race-specific features: Hercules takes your racing seriously and is packed with features geared to getting results; from Performance Targets, Heel/linearity correction of boat speed and Dynamic Damping to HV display context switching and starting information.
- Ultra-fast ARM Processor: The CPU achieves processor speeds of up to 50 times that of its predecessor, for rapid calculation, real-time data and fast updates; each with the trademark B&G precision
- Network compatible: H5000’s highly compatible network provides peace of mind and swift, seamless integration with other instruments and electronics across the B&G marine network including AIS, radar and chartplotters
- Browser-based set-up: The CPU features browser-based setup via the new H5000 interface for fast, efficient and hassle-free commissioning and calibration
- LED status indicators: Status indicators on the CPU provide a clear indication of system status.

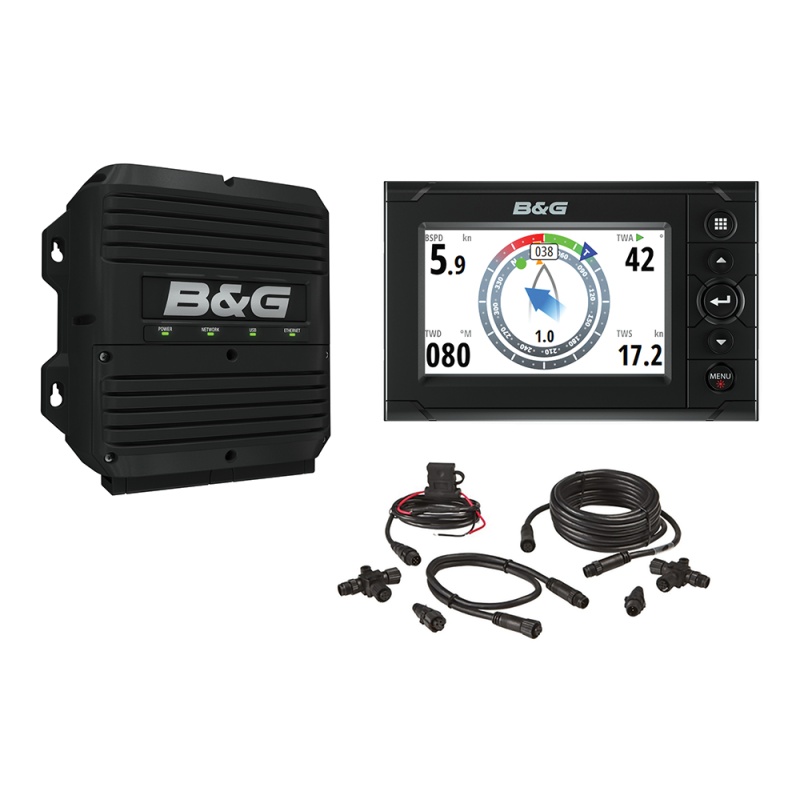

The H5000 Graphic Display is a powerful 5-inch, sunlight viewable, colour display with a straightforward user interface. Enjoy extremely wide viewing angles while displaying your sailing data in digital or graphical form. Designed for sailing, it is packed with unique features including SailSteer, Start Line, WindPlot, Laylines, MOB and more. It is glass bonded for zero condensation and enhanced contrast. NMEA compatible, use the Graphic Display as the main visual information hub of your H5000 system or as a full-colour alternative to a Race Display.
The Display uses an incredibly small amount of power, yet is the brightest and clearest display in its class. Refresh rates of up to 10Hz are possible using its modern ARM processor. It is packed with the popular features of its predecessor, the H3000, while modernising it for simpler operation and enhanced graphic capabilities. With no external metal parts, the durable H5000 Graphic Display is completely corrosion resistant. And, after dark you can dim the backlight to almost zero for outstanding low light viewing.
- Unique Sailing Features: SailSteer, Start Line, WindPlot for tracking weather trends, Laylines, MOB and more to enhance your racing or cruising experience
- Smart, Straightforward Menus: Completely redesigned operating system provides straightforward access to powerful, easy to understand, sailing features.
- Bright, Colour Display: Tough bonded glass, AR coated, 5-inch colour display; sunlight viewable by day and with backlight dimming down to almost zero for comfortable night time viewing
- Seamless networking: The H5000 Graphic Display is NMEA 2000® compatible for ease of integration into H5000 systems and your existing network.
- Tough design:built to last: Tough, corrosion free, thermoplastic and glass construction providing you with the peace of mind it can weather the elements – whether the spray of the race or the heat of the sun
- Ultra-Fast ARM Processor: Fast, modern ARM processor provides the power to deliver smooth graphical displays at refresh rates of up to 10Hz.
