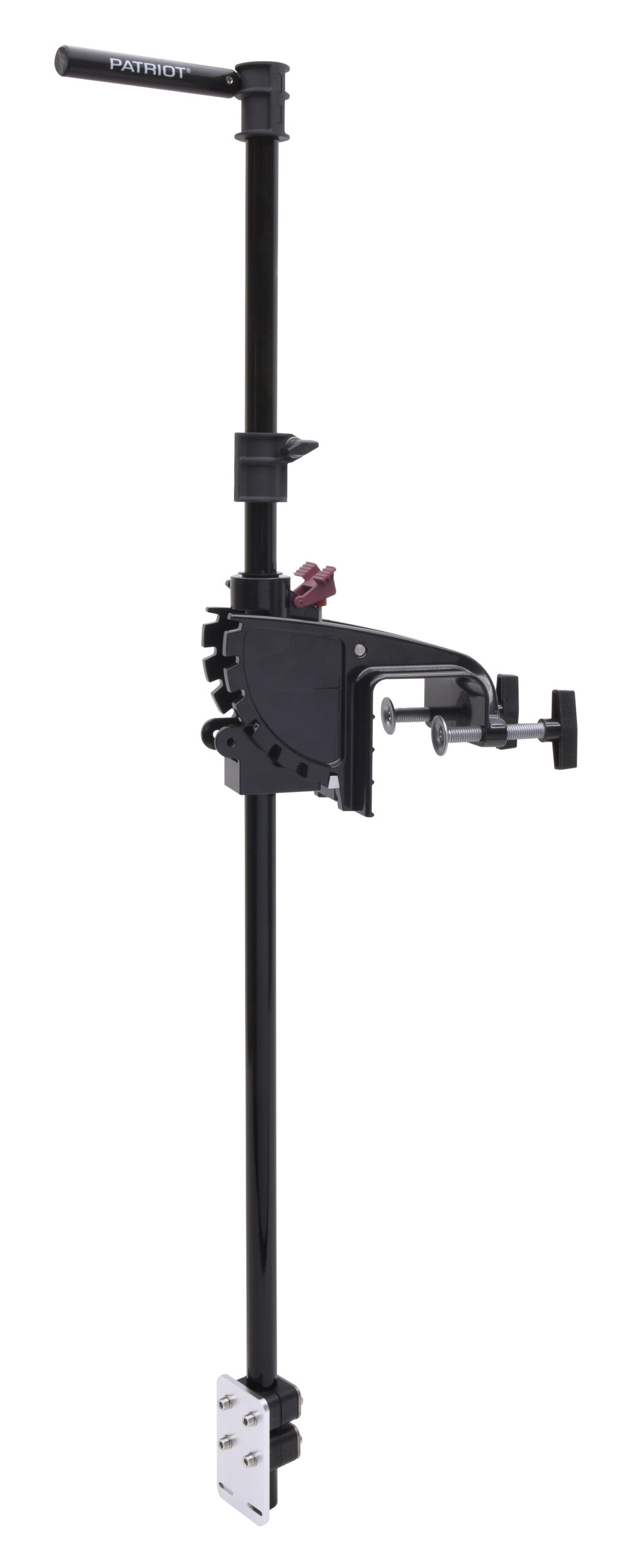

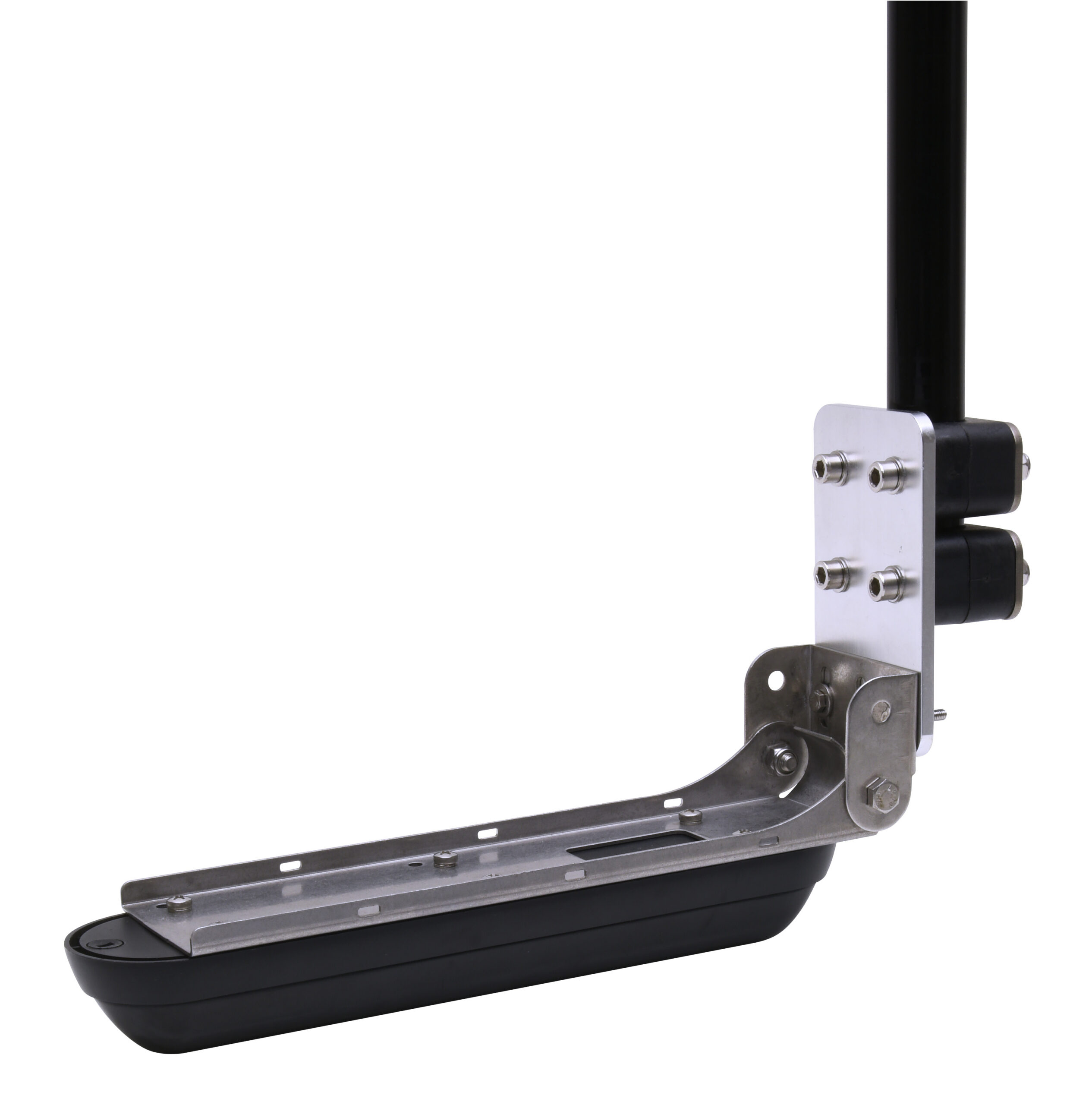

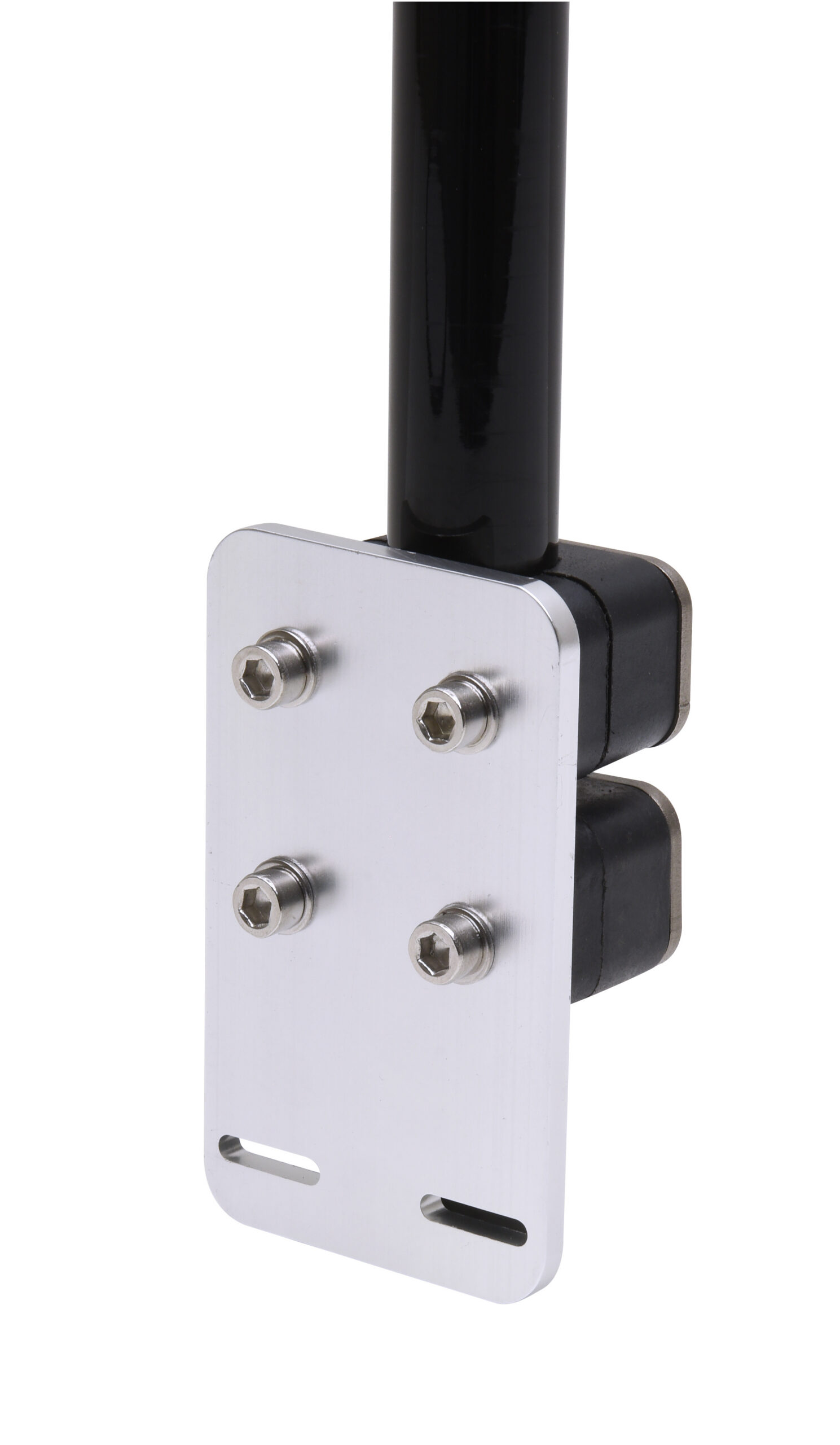

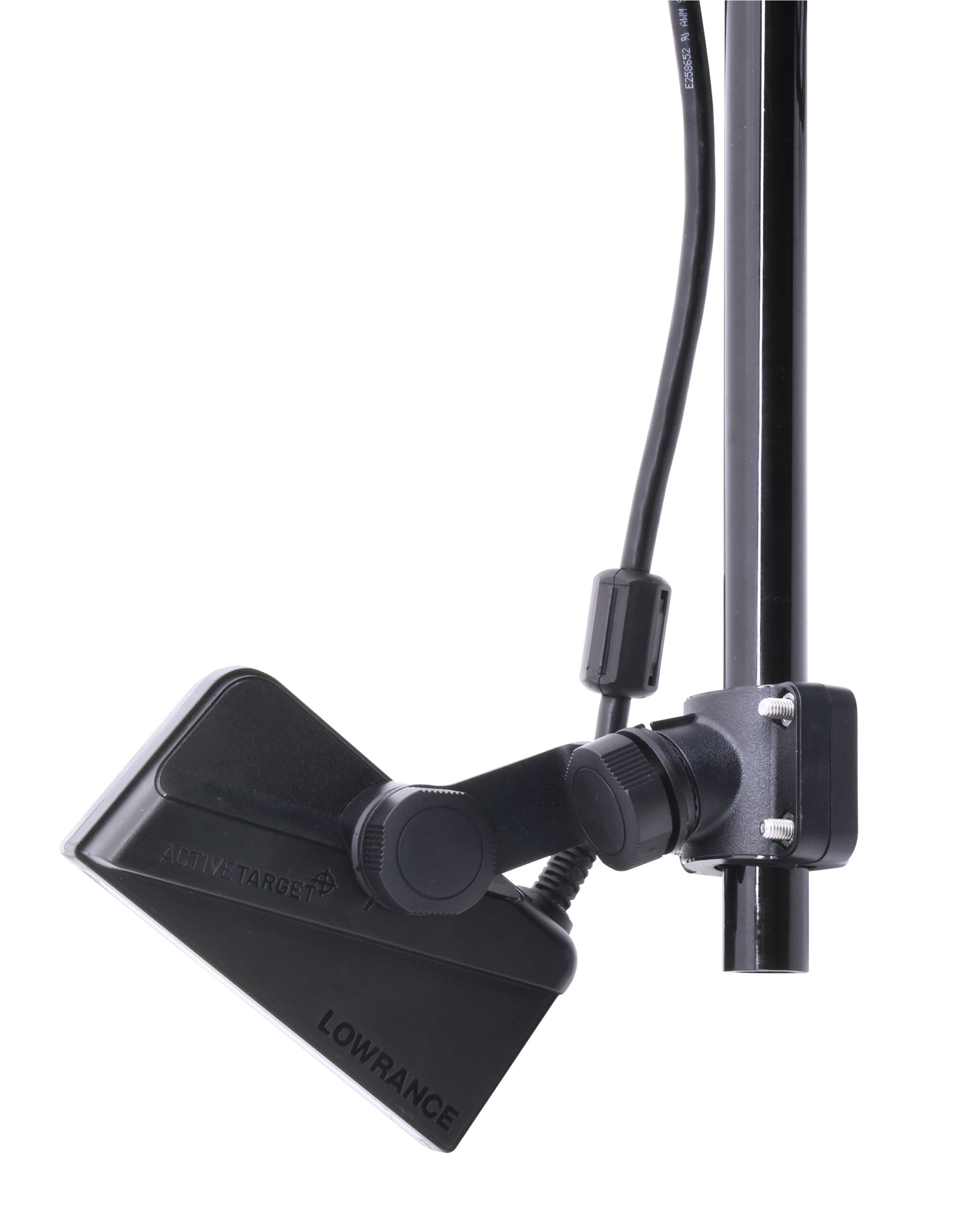

The robust and easily movable Patriot® MultiFix transducer mount is designed to be compatible with all types of fish finder transducers. The aluminum mounting plate located at the lower part of the bracket features pre-drilled holes for the most common transom and angle transducers. In addition to transom mounting, various live transducers (e.g. Lowrance ActiveTarget & LiveSight) can be mounted directly to the pole. The height and rotation of the Patriot® MultiFix transducer mount can be adjusted steplessly using the quick-release clamp on the mounting bracket. At the top of the pole, a second stepless quick-release clamp and control handle allow 360-degree rotation when using live sonar. The top handle is also attached with a quick-release clamp, making it easy to remove when rotation is not needed. Designed for maximum versatility, the Patriot® MultiFix transducer mount features a strong metal mounting clamp with 7-step tilt angle adjustment and a sufficiently long (115 cm) composite pole that can easily be shortened if needed. No tools are required to attach the mount to the boat, and it is suitable for boat edges or transoms with a maximum thickness of 82 mm. With the easily movable Patriot® MultiFix, the same transducer and fish finder can be used on different boats. For example, when mounted to a sled edge, it can also be used for ice fishing. Features: Strong metal mounting clamp; Maximum mounting thickness 82 mm (e.g. gunwale/transom); 7-step tilt angle adjustment; Durable composite pole; Pole length 115 cm; Pole diameter 25 mm; Stepless height adjustment; Stepless 360-degree rotation adjustment; Removable top handle; Lockable in desired position; Quick adjustment via quick-release clamps; No tools required for installation; Pre-drilled mounting holes for common transom transducers; Live transducer can be mounted directly to the pole (e.g. Lowrance ActiveTarget & LiveSight); Very suitable for vertical jigging; Excellent for live sonar use; Also suitable for
