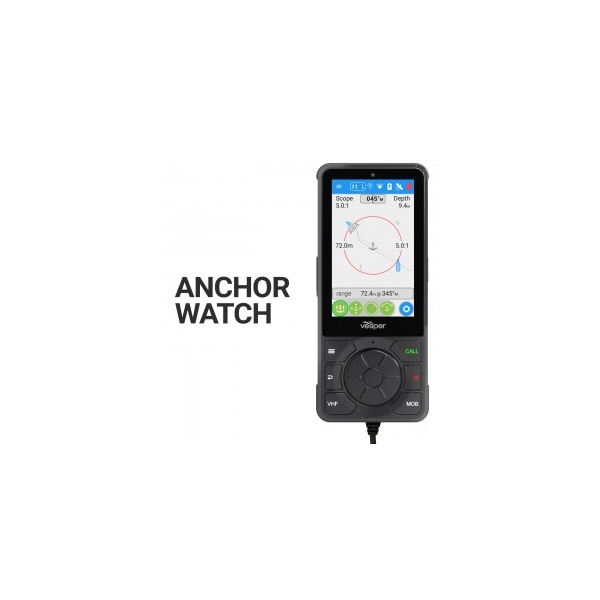

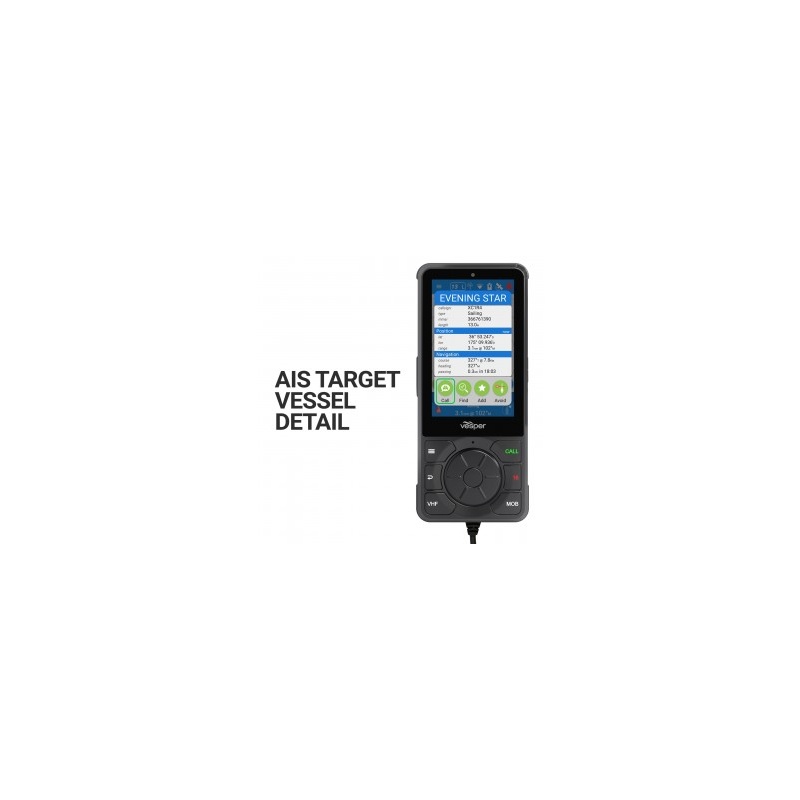

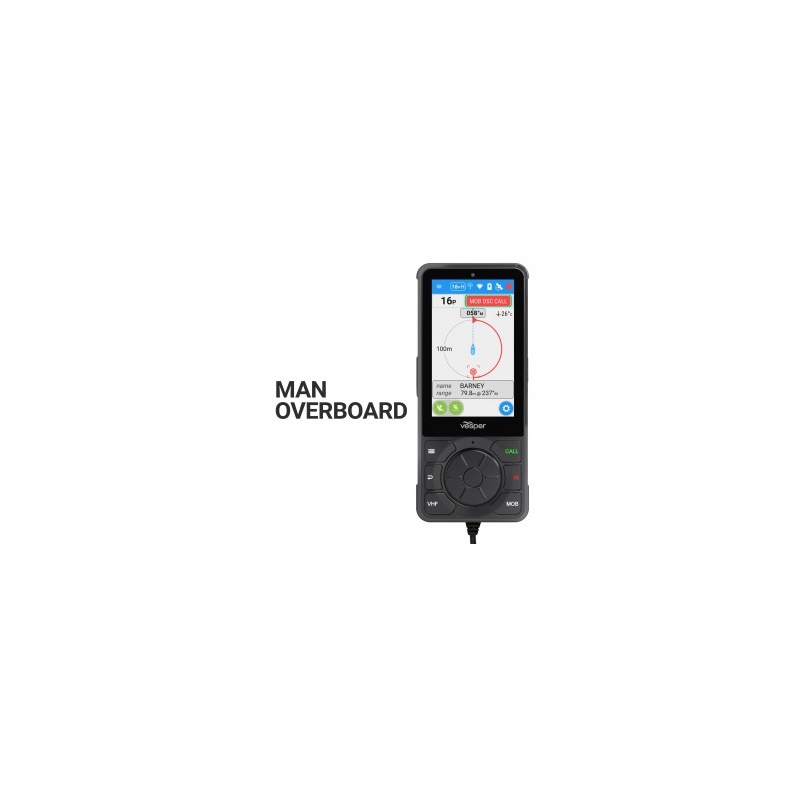

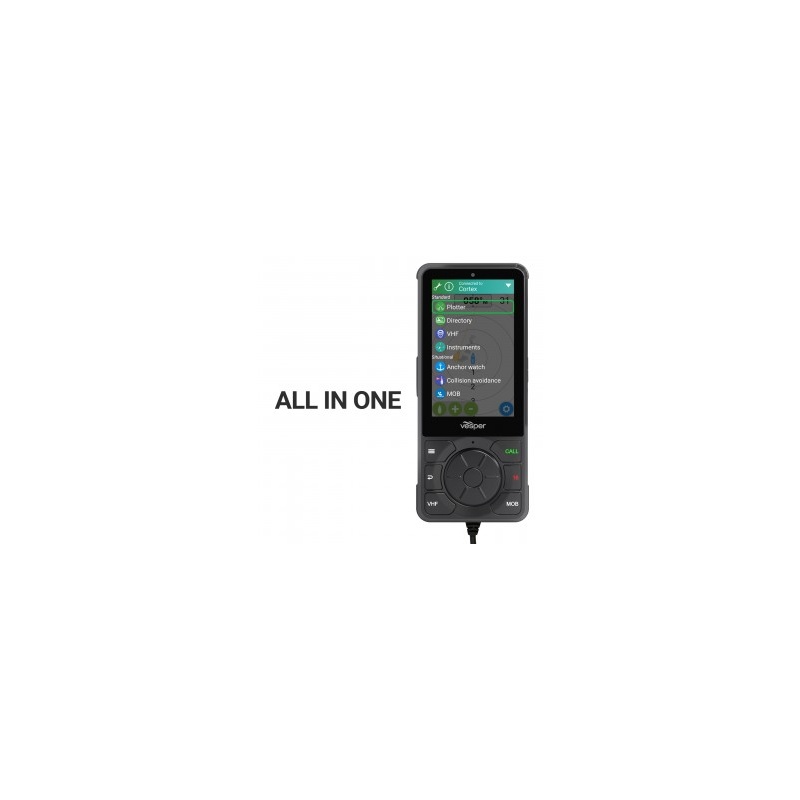

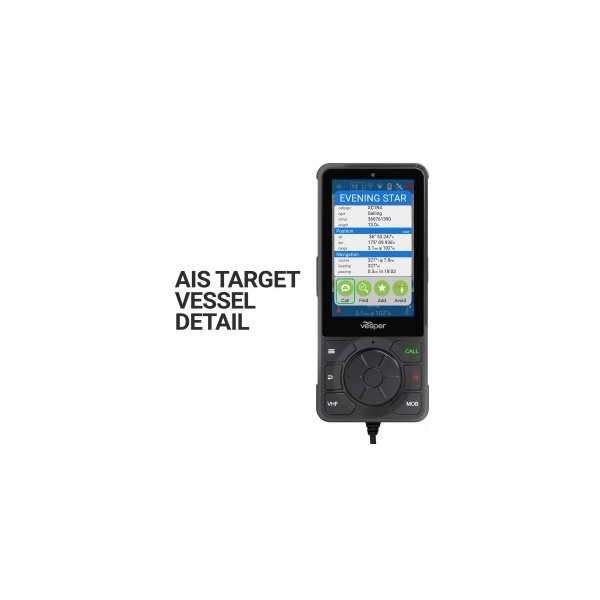

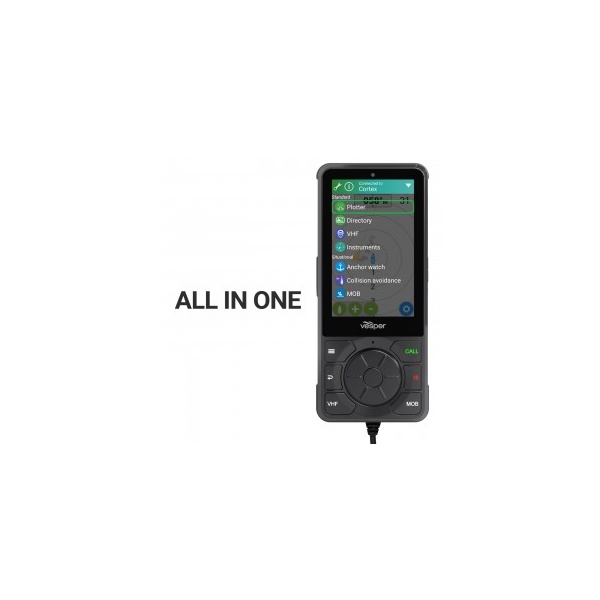

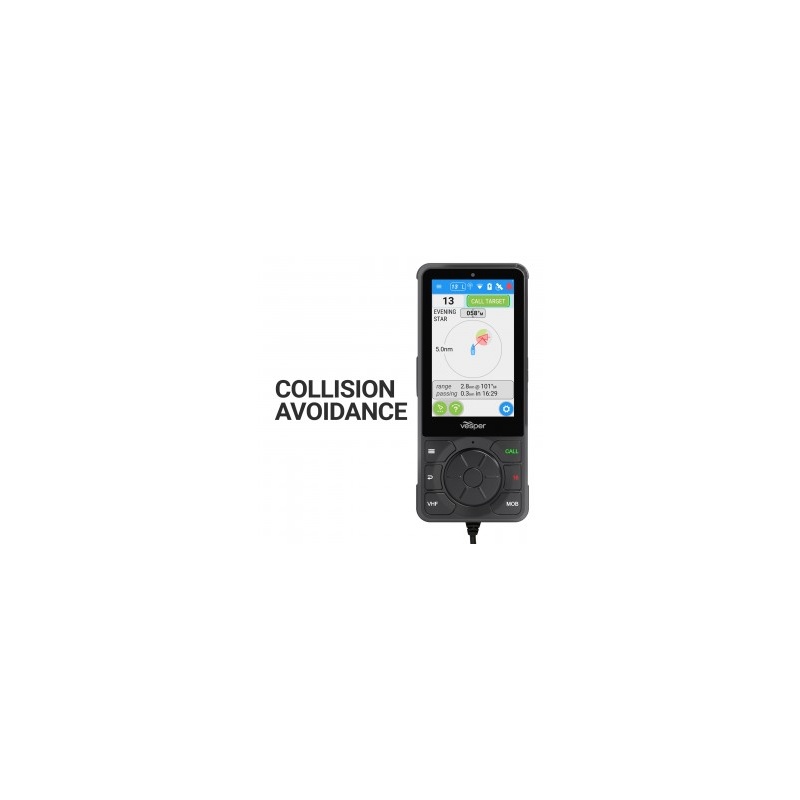

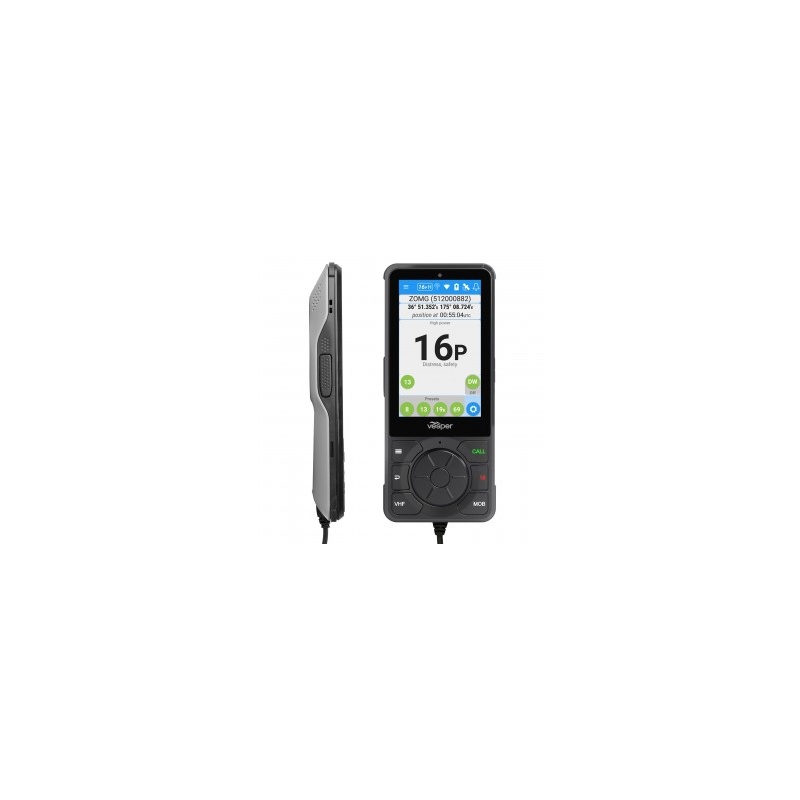

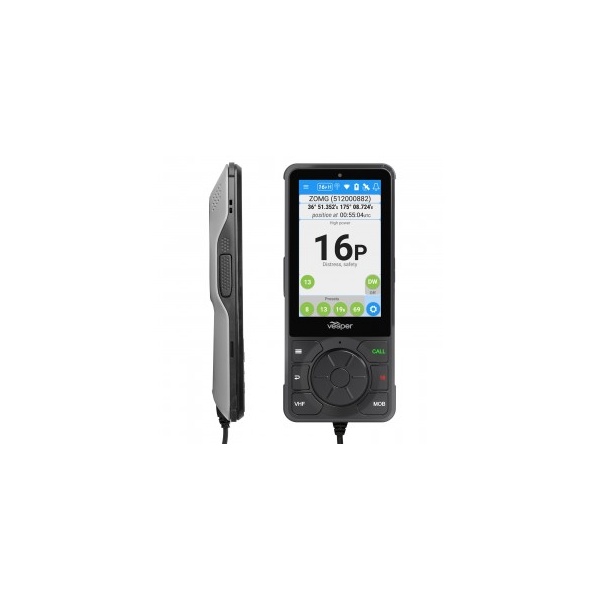

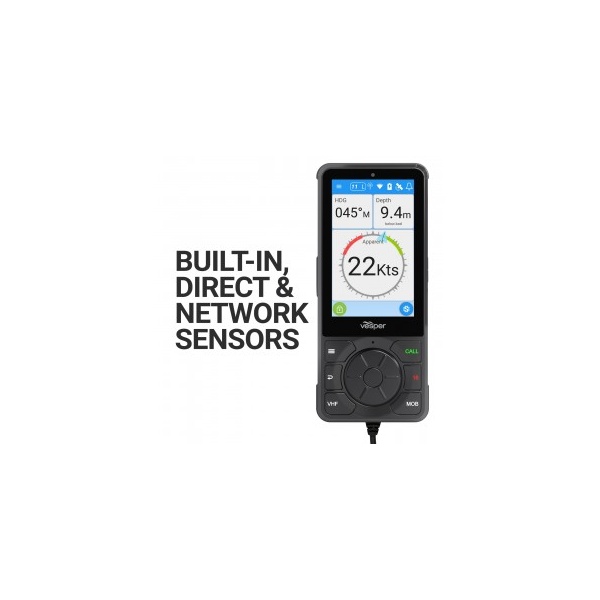

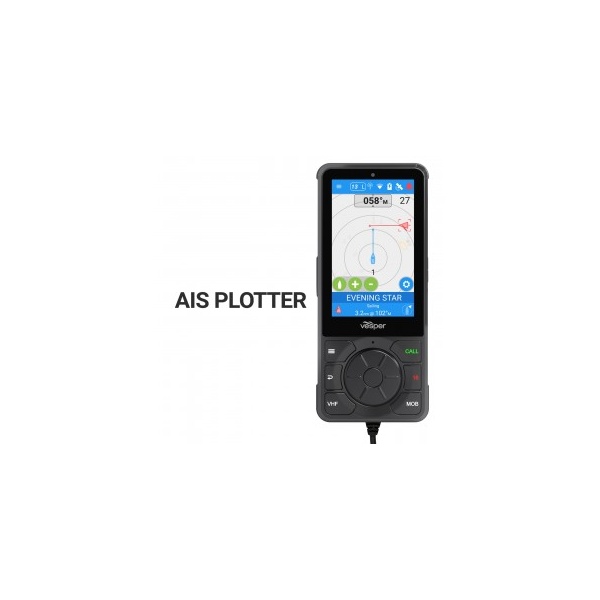

The Cortex H1 Tethered Handset is the voice and calling interface used for VHF and DSC calls. The handset’s touchscreen display is the primary interface together with dedicated buttons and the Click-Wheel for swift navigation, ease of operation and single-handed use. The touchscreen is purpose-built for the harsh marine environment and is designed and manufactured for use in wet conditions and with gloves. The handset provides a screen to set up and manage the Cortex M1 hub, view AIS target data and vessel instrumentation, manage and monitor alarms and configure the remote vessel monitoring. Upgrade your Cortex M1 SOTDMA smartAIS or add additional handsets for access to key functions in more places on board. Have situational awareness and VHF communication at your fingertips, no matter where you are on your boat. The Cortex H1 comes bundled in the Cortex V1 VHF. Add additional H1 handsets for additional stations. Includes an H1 Bulkhead Bonnector and an H1 Cradle. Operating Temperature: -25°C to +55°C (-13°F to 131°F); Audio: 3W Class D amplifier, THD < 5% @ 85dBA; Screen: LCD TFT Si, 640 x 800, 24bit Colour; Touch: Capacitive, optically bonded to LCD. Glove and salt water operable; Backlight: 600 cd/m2. Ambient light sensor for auto dimming.
|Darba spriegums||12V, 1A max, 200mA nominal, 12 -24V compatible|
New front mountable design for easy installation
New Industrial Design to align with style of Lowrance MFD’s
Seamless integration with a wider B&G system through NMEA 2000 and 0183
Built in AIS Receiver
Large screen with intuitive user interface
Esimene Simradi VHF raadio, millel on sisse ehitatud B-klassi AIS vastuvõtja ja saatja ning GPS.
• B-klassi AIS saatja ja vastuvõtja
• sisse ehitatud GPS
• D-klassi DSC VHF raadio
• NMEA 2000 ja 0183 ühilduvus
• võimalik lisada kuni kaks HS40 juhtmevaba käsitoru
• suur ekraan ja intuitiivne kasutajaliides
• eemaldatav käsimikrofon
• võimalik lisada väline kõlar või hailer
The V60-B includes a Class B AIS transmitter and receiver, which not only receives AIS targets but also transmits your yacht’s position to nearby AIS-equipped vessels. This helps other mariners to spot your boat through any conditions, day or night. A built-in AIS receiver monitors the position of other AIS-equipped vessels, helping you to proactively avoid collisions in crowded harbours and waterways. AIS information can be viewed on the radio’s built-in screen, or overlaid on your chart or radar screen through a compatible chartplotter.
The Cortex External Speaker is designed for the marine environment with an IP66 ingress protection the speaker is suitable for mounting almost anywhere on board. Compact in size, the speaker features a durable and UV stable polymer housing. Rated at 70W max power output (35W RMS) with a frequency response of 120Hz-20,000Hz to deliver a full clear sound for Cortex VHF voice and unique annunciated alarms. Surface Mount through using a 74.5mm (2 15/16”) diameter hole and requiring a minimum mounting depth of 56mm (2 1/4”). Mounted Outer Diameter: 93.5mm; Frequency Range: 120hz~20khz; Impedance: 4ohm; Watts: 70 Watt; Magnet Ferrite: 4oz; Woofer Material Polypropylene Cone; IP Rating: IP66; UV Stable: Yes; Pre-wired with 6.5ft / 1.98m of cable.

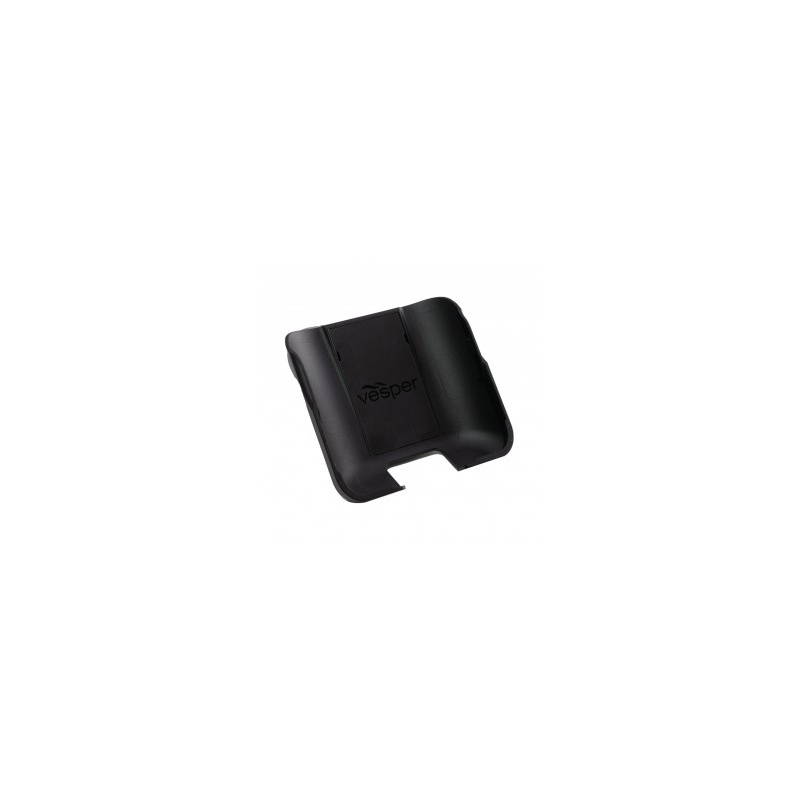

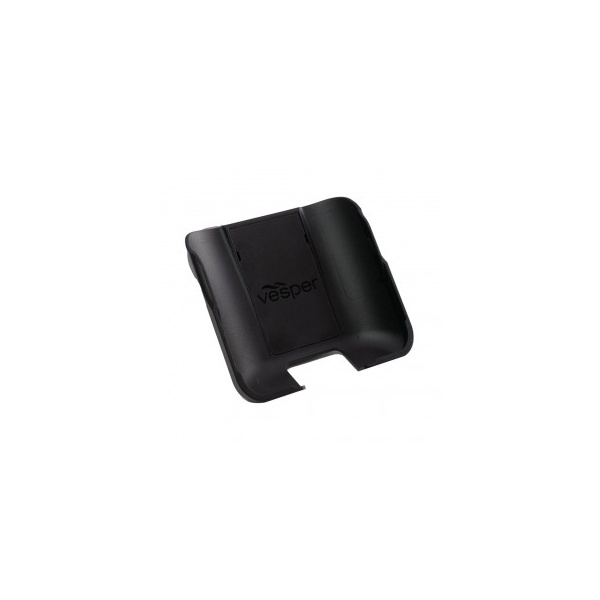

Mount your handset anywhere on the boat with the non-powered handset cradle. The cradle has a two piece design hiding the mounting hardware behind the snap cover leaving you with a clean sleek design on the helm or bulkhead. The non-powered handset cradle can be used with either the H1(tethered) or H1P (portable) handsets.
