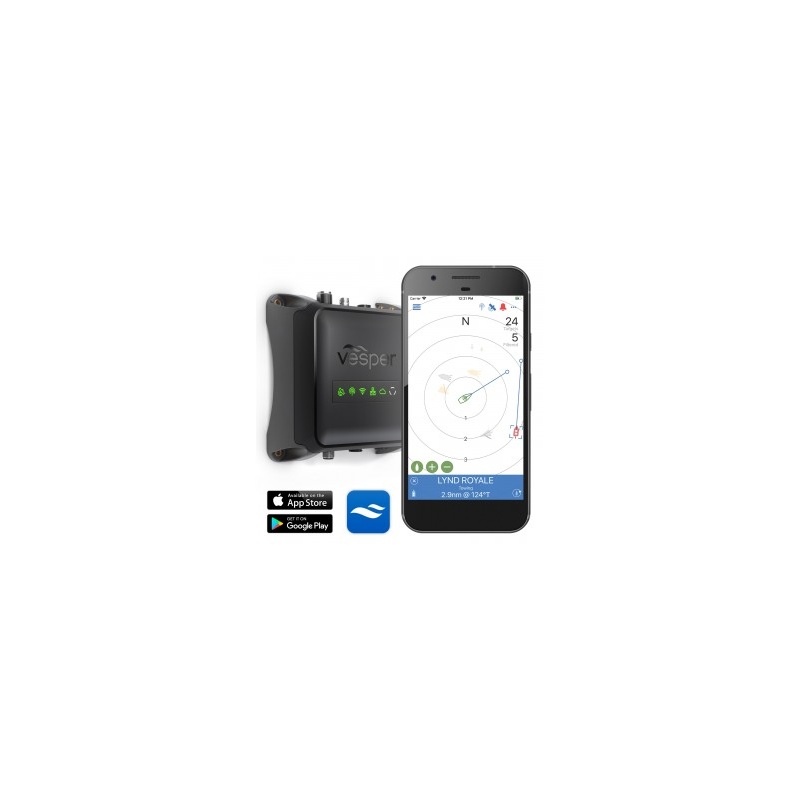

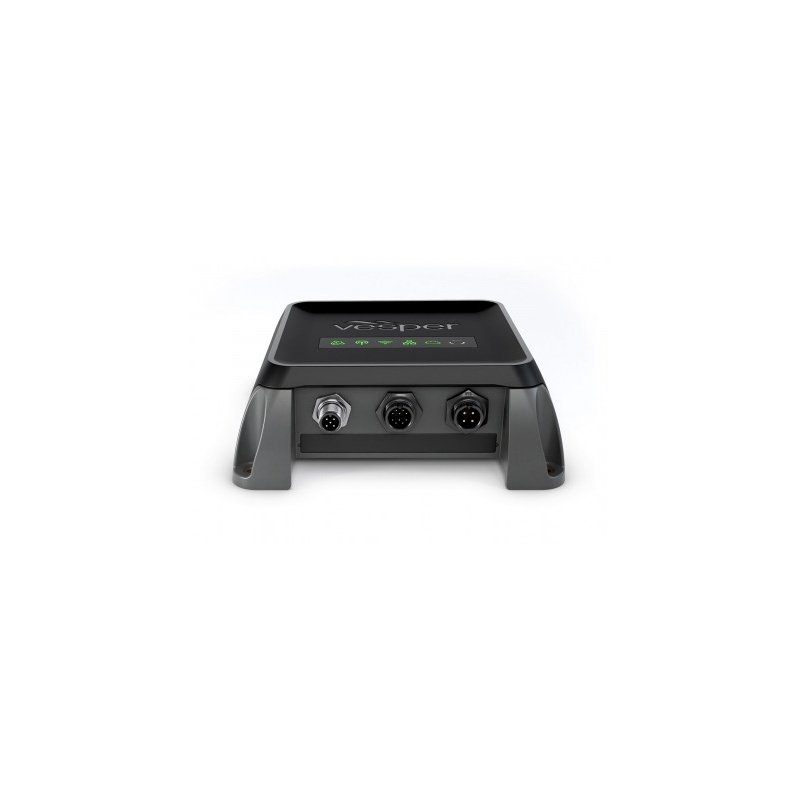

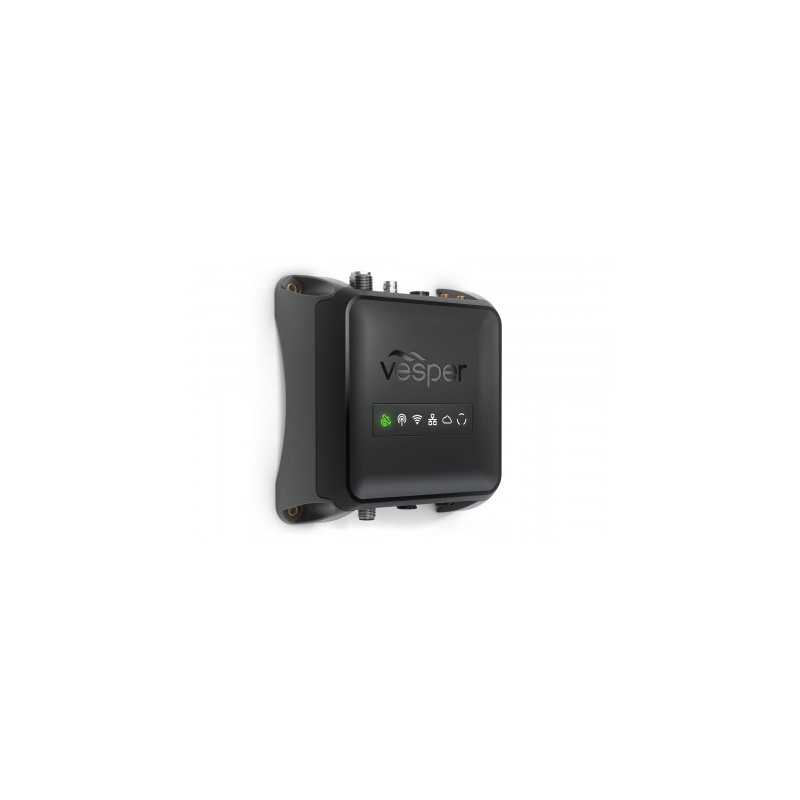

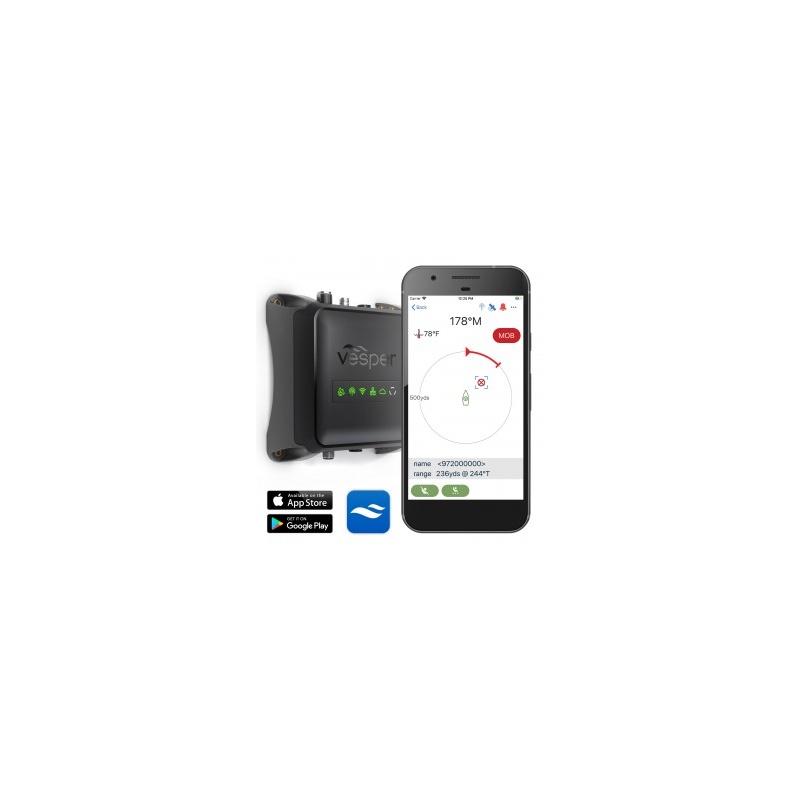

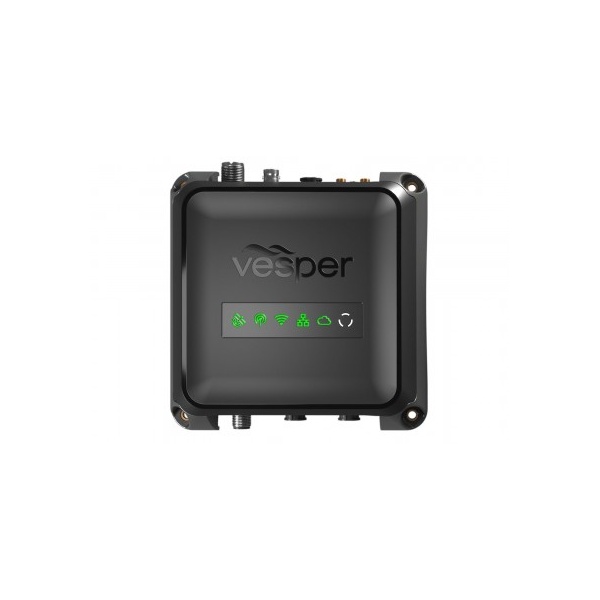

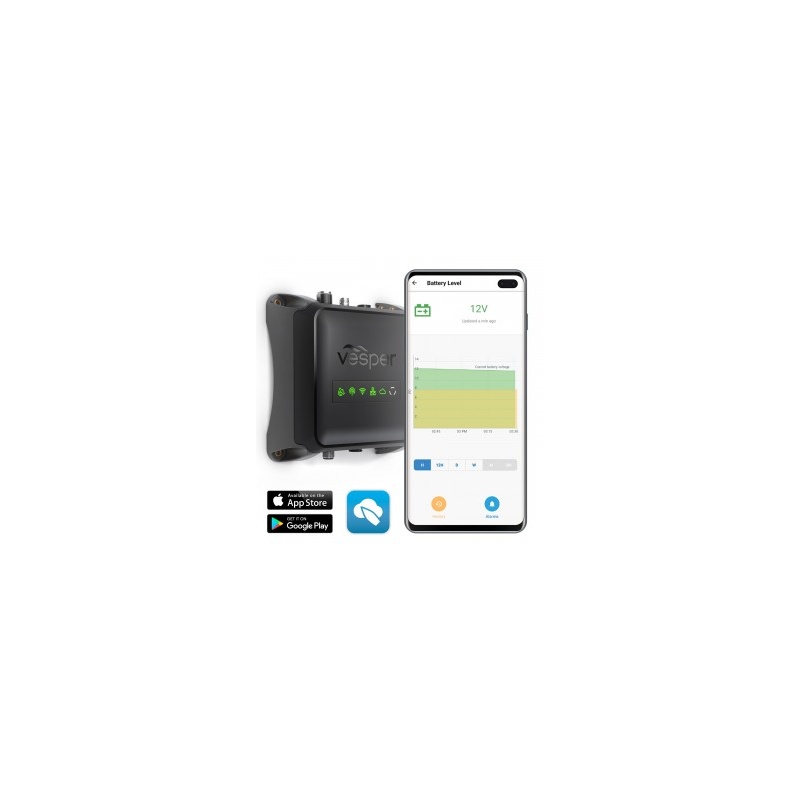

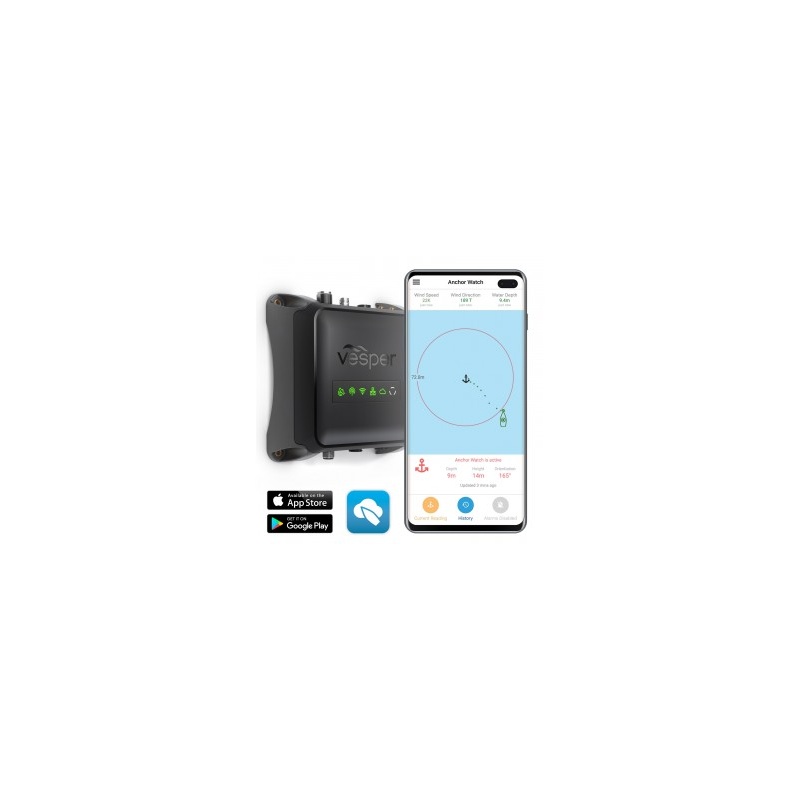

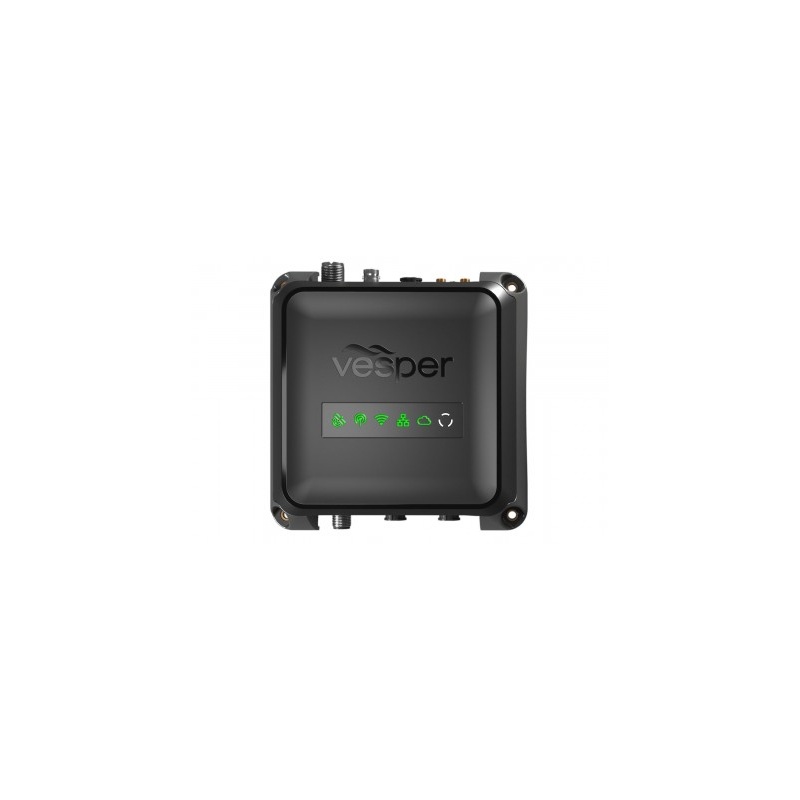

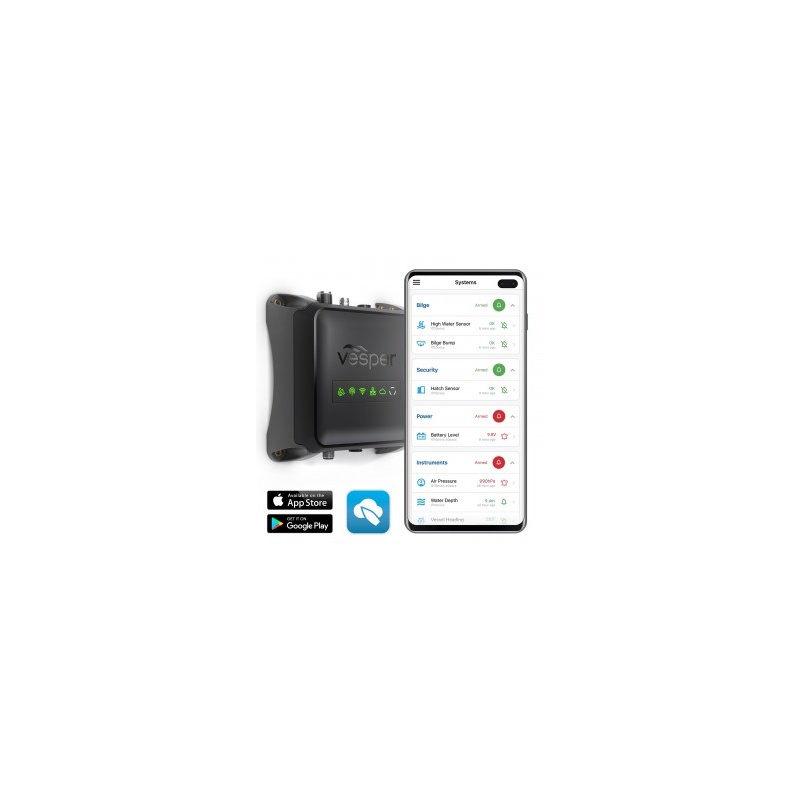

Full Class B SOTDMA with smartAIS send and receive and integrated no-loss splitter. Monitor and control onboard systems and keep alerted on board or ashore from your smartphone. Operating Temperature: -25°C to +55°C (-13°F to 131°F); Supported Protocols: AIS Class B SO-TDMA, VHF Voice, Class D DSC, ATIS (user configurable, EU region), NOAA Weather (US region); Transmitter Frequency Error: Less than 300Hz; Antenna Connector: SO239; Splitter: Max input power 25W, Insertion Loss RX 0dB, TX < 1dB; Splitter Connector: BNC (2W).
|Darba spriegums||9-33V. 12V: 6A max, 500mA nominal|
Esimene Simradi VHF raadio, millel on sisse ehitatud B-klassi AIS vastuvõtja ja saatja ning GPS.
• B-klassi AIS saatja ja vastuvõtja
• sisse ehitatud GPS
• D-klassi DSC VHF raadio
• NMEA 2000 ja 0183 ühilduvus
• võimalik lisada kuni kaks HS40 juhtmevaba käsitoru
• suur ekraan ja intuitiivne kasutajaliides
• eemaldatav käsimikrofon
• võimalik lisada väline kõlar või hailer
The Cortex External Speaker is designed for the marine environment with an IP66 ingress protection the speaker is suitable for mounting almost anywhere on board. Compact in size, the speaker features a durable and UV stable polymer housing. Rated at 70W max power output (35W RMS) with a frequency response of 120Hz-20,000Hz to deliver a full clear sound for Cortex VHF voice and unique annunciated alarms. Surface Mount through using a 74.5mm (2 15/16”) diameter hole and requiring a minimum mounting depth of 56mm (2 1/4”). Mounted Outer Diameter: 93.5mm; Frequency Range: 120hz~20khz; Impedance: 4ohm; Watts: 70 Watt; Magnet Ferrite: 4oz; Woofer Material Polypropylene Cone; IP Rating: IP66; UV Stable: Yes; Pre-wired with 6.5ft / 1.98m of cable.

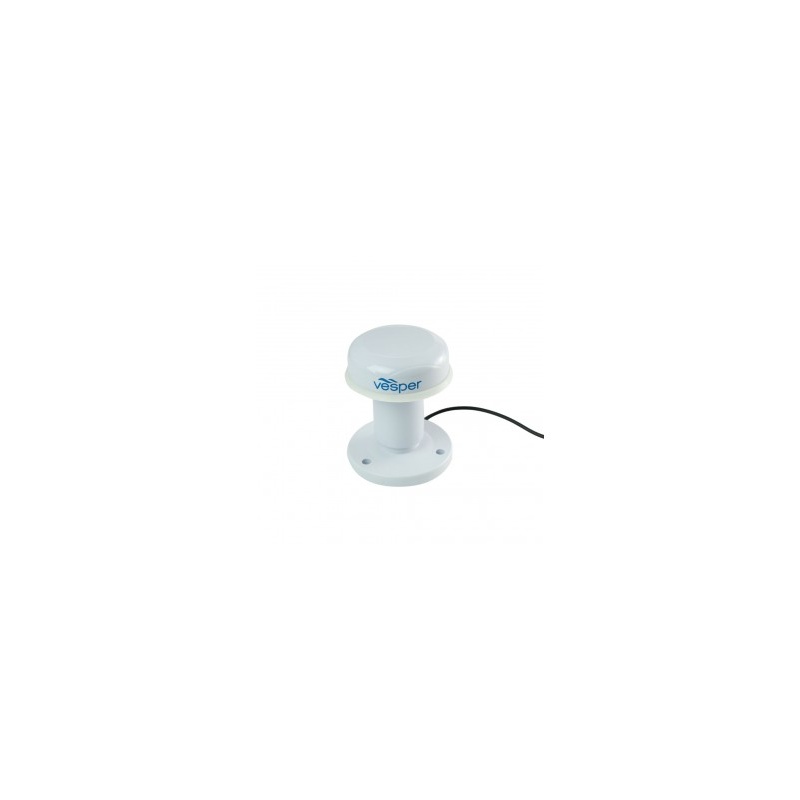

This antenna is specially designed by Vesper Marine to be used with our Antenna Splitter. Up until now you´ve had to choose an AIS-tuned antenna that is optimized for the AIS frequencies but has lower performance for your VHF radio. Or you could choose an antenna that is designed for VHF radio communications but isn´t optimal for AIS. Either of those works but we´ve got a better solution. We´ve created an antenna that solves this dilemma. It has two key features that combine to make it ideal for use with our antenna splitter: Wide bandwidth of 6 MHz means it will cover 3 MHz above and below the center point; 159 MHz center frequency gives excellent performance for VHF radio (156 Mhz) and AIS (162 MHz). The result is an antenna with superior performance over other designs. It has less than 1.5:1 VSWR at 156 MHz all the way up to 162 MHz. With other VHF or AIS antennas you´ll only get low VSWR at one end of the frequency band but not both. We´ve put all of this into the same physical package as our most popular antenna. It´s perfect for installations where the lowest possible windage is a requirement. A detachable cable makes installation and maintenance easier and allows for any length cable to be used. It easily mounts on a mast but is also suitаble for mounting most anywhere with it´s included L-bracket. Example mounting locations from our customers are along side solar panels, bimini sides, on an arch, above a radar, or along the edge of a cabin top. The L-bracket can be removed allowing for even greater mounting flexibility. Specially designed 1.0m stainless steel antenna; Easily replaceable stainless steel whip if it gets lost or damaged; Optimized for sharing between VHF radio and AIS transponder; Includes SO239 socket & mounting bracket; Perfect for masthead or installations where the L-bracket suits; Easily adapted to most any installation configuration; Detachable cable allows for any length to be used.
This package is designed for installing an XB-8000 AIS Transponder in a nav station or wheelhouse and allows you to share a single VHF antenna between your AIS transponder and VHF radio. This package is designed to replace your existing VHF antenna with our optimized AIS/VHF shared antenna but keep your existing antenna cable.
