863,96 €
All new product available in 5”, 7” and 9”
Chart plotter first, depth finder second
Inexpensive and gets the job done
Targeted at the Basic Boater (recreational/leisure boater), not the Frequent Fisherman. Consumer who wants basic functionality. Does not want or need all the bells and whistles Does not want to have to learn how to use the product every time they go out; turn it on and shows me where I am, where I want to go and the depth
No networking means no networking complications

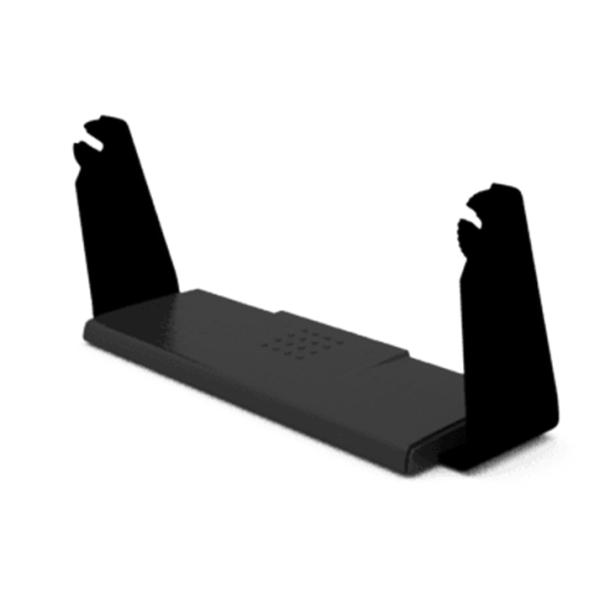

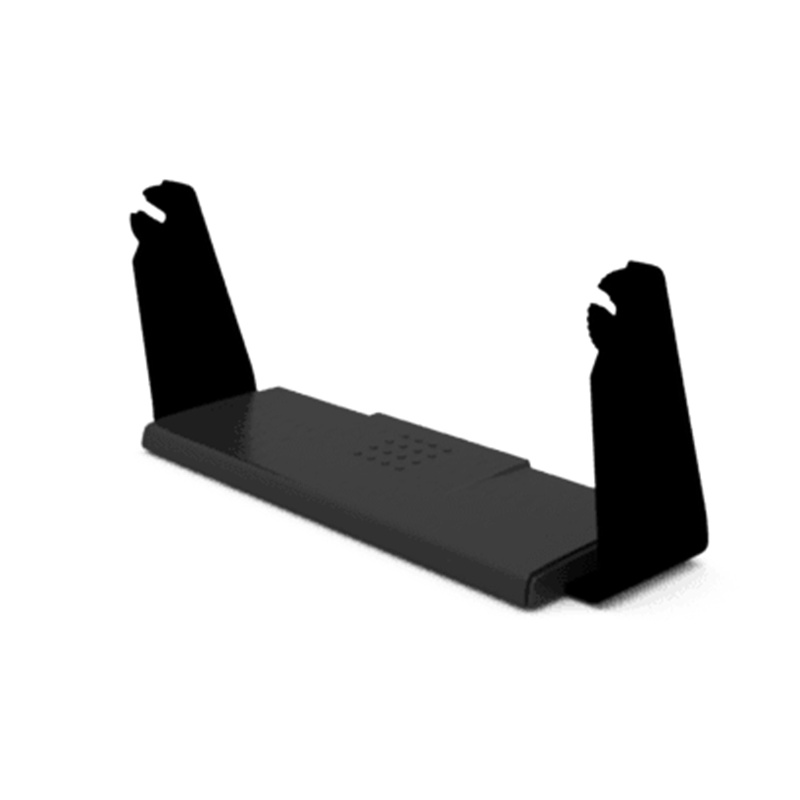

Installation friendly. Mount from front or bracket mount. Push fit Power and Sonar connectors
Take control of your on-board electronics with the GO12 XSE. Perfect for sportboats, cruisers, and center-consoles, this touchscreen chartplotter features built-in sonar, radar capability, and seamless integration with a wide range of optional accessories from autopilot to entertainment. Stay in control from anywhere on board with wireless mirroring to mobile devices.
| Specifications | |
| Operating Temperature Range | "-15°C to +55°C (5° F to 131° F) |
| Storage Temperature Range | "-20°C to +60°C (4°F to 140°F) |
| Ethernet Ports | 1 x 5 pin yellow connector x 1 Mbit. Radar and Sirius (USA only) connectivity only (unless unlocked) |
| NMEA 2000 Connectivity | 1 x NMEA 2000 Micro-C port, 1 LEN |
| Supply Voltage | 10 - 17 V DC |
| Update rate | 10 Hz |
| Display Size | 12 inches |
| Screen Brightness | 1200 nits |
| Display Resolution | 1280 x 800 |
| SD Card Storage | 2 MicroSD slots, max. 32GB each. >32 GB format to NTFS |
| Warranty Period | 2 Years |
| Weight | 2.242 kg (4.94 lbs) |
| Power Consumption typical | 24 W |
| Power Consumption max | 30 W |
| Dimensions W x H x D | 310 mm x 219 mm x 82.7 mm (12.20" x 8.63" x 3.26") (no bracket) |
| GPS Receiver Channels | 32 Channels |
| Recommended Fuse Rating | 3A |
| Waypoints, Routes, Tracks | 6000 waypoints, 500 Routes with 100 max route points, 50 tracks with up to 12,000 track points. |
| Viewing Angles | 80° top/bottom, 80° left/right |
| Internal Storage | 90MB |
| Steering Modes | Auto, Nav., No Drift, Follow up, Non-follow up, Turn patterns, Standby, *Wind, *Wind NAV. (*Boat type set to Sail) |
| Autopilot | Auto, Nav., No Drift, Follow up, Non-follow up, Turn patterns, Standby, *Wind, *Wind NAV. (*Boat type set to Sail). Requires STBY button or Controller with STBY button to commission |
| Digital Switching | BEP C-Zone |
| Mounting Type | Bracket or Panel |
| Approvals Compliance | CE, C-Tick, HDMI, EN 60950-1:2006, EN 60945:2002 EN 300 440-2, V1.4.1 |
| Shock Vibration | CE, C-Tick, HDMI, EN 60950-1:2006, EN 60945:2002 EN 300 440-2, V1.4.1 |
| Time to First Fix | Cold start less than 90 seconds exposed to open sky, Satellite Reacquisition 5 sec |
| NMEA 0183 Sentences supported | Exports NMEA0183 over WiFi |
| Radar compatibility | Halo, Broadband, HD Radars |
| Position Accuracy | Horizontal Accuracy 3 m (9.8 ft) |
| Charts supported | Insight, Navionics (Gold, NAV+ Platinum+) , C-MAP (MAX N, MAX N+) NV Digital (Raster US Charts) |
| Sonar Compatibility | Integrated CHIRP / DownScan / ForwardScan. Sinle 9 Pin Xsonic Connector |
| Item Connectivity WiFi | Internal |
| Bluetooth | Internal |
| GPS | Internal, 10Hz, WASS, MSAS, EGNOS |
| Waterproofrating | IPX 6 and 7 |
| PC Connectivity | None |
| Video | None |
| AIS | Receive AIS data over NMEA 2000 only |
